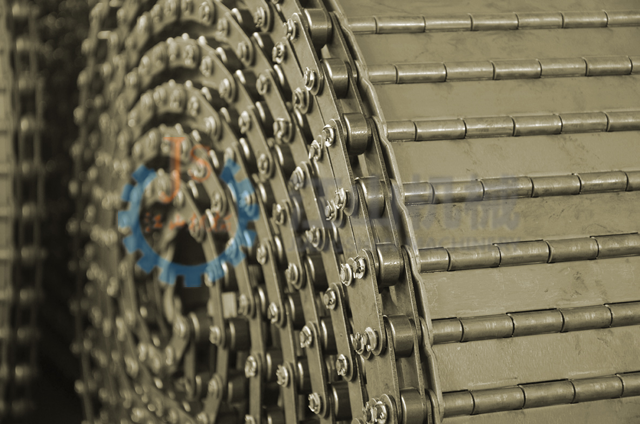

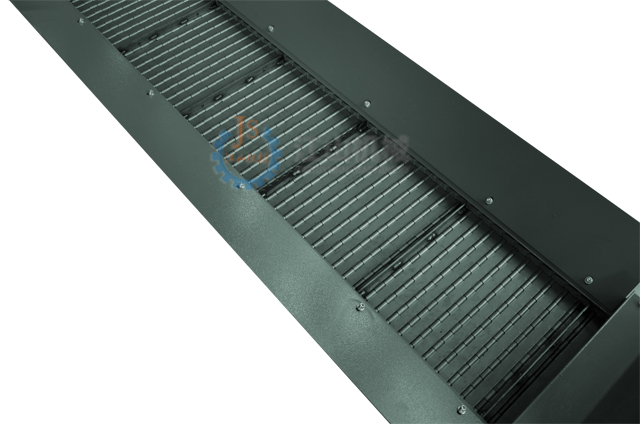

JSL chain plate series chip conveyor

50 chain plate
●Suitable for conveying long chips (50mm) and round chips.
●Large scope of application.
●Delivery length within 10 meters.
●Chain plate thickness t=2.3mm pitch 31.75mm.

80 chain plate
●Suitable for a large number of chips.
●Chip conveying within 30 meters in total length.
●Chain plate thickness t=3mm pitch 50.8mm.

50 chain plate

80 chain plate

Size of each part

W	250,300,350,400,450,500,550,600
H	140,165,200
a	30, 45, 60, 75
H	a =60:190.9 or more
L	10000 or less
L3	326.9 or more
A	A>W

W	250 ~ 300, 350, 400, 450, 500, 550, 600,
	350, a =00 when 300
A	425, a=00 when 300
α	45° .60°
H	α=600:300 or more
L	30000 or more
L3	450 or more

性能

Geared Motor	0.2KW 4P AG 220/380V
Chain	C2052HP pitch 31.75mm
Conveying Rate	0.9m/min[50Hz],1 .1m/min [60Hz]
Conveying Capacity	w=300,h=165時 0.24m³/h [50Hz] 0.30m³/h [60Hz]
Safety Device	Forque limiter+approaching switch
Scrap Requirements	Chips with length over 50mm
Optional Device	Electric control box Coolant recycling device(for high-efficiency recycling of coolant attached on cutting scrap) Oillet type chain plate(where large quantity of coolant will be used) Salient point type cl-ffiin plate(to avoid smal l flaky scrap being attached on chain plate during the converying period)

Geared Motor	0.4KW 4P AC 220/380V α=0° L=15000 is not full 0.75KW 4P AC 220/380V α=45°，60° L=15000 is not full α=0° 1.5KW 4P AC 220/380V α=45°，60° L=20000 or more
Chain	C2082HP pitch50.8mm
Conveying Rate	0.75KW 3.5m/min [50Hz] 4,2m/min [60HZ]
Conveying Capacity	0.75KW α =45° ,W=35° 0.85m³/h [50Hz]
Safety Device	rorque limiter+approaching switch
Scrap Requirements	Chips with length over 50mm
Optional Device	Electric control box Coolant recycling device(for high -efficiency recycling of coolant attached on cutting scrap)
